Uavionix Skybeacon Nav Strobe Light / Ads-b Out - Experimental Aircraft Only

Артикул:

руб.

Наличие: – Есть в наличии у нашего поставщика. Доставка на наш склад в течение 5...6 недель после оплаты Вами заказа.

Оплата и доставка

Overview

Note: This version of the skyBeacon is only in intended for use on experimental aircraft. For certified aircraft, please see the TSO version.

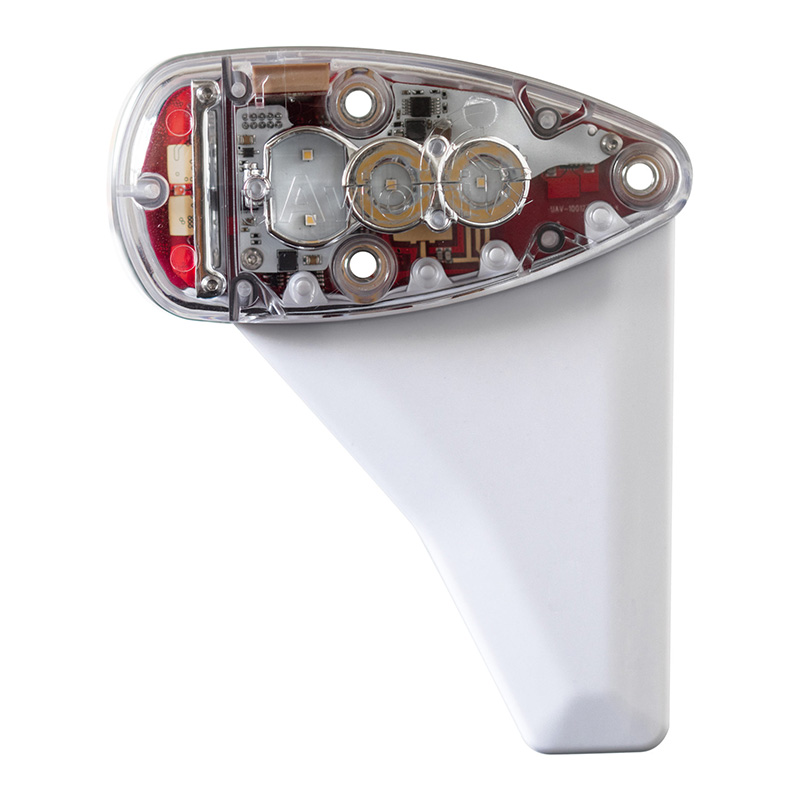

The all-in-one ADS-B OUT solution packed into a direct wingtip position light replacement. skyBeacon combines a WAAS GPS, 978UAT ADS-B transmitter, antenna, and an upgraded LED position and strobe light onto your wingtip. skyBeacon works with your existing mode C or S transponder and uses the existing wiring to achieve its famous 10-minute install - making skyBeacon the lowest-cost easiest install ADS-B solution on the market.
  • 2020 Compliance
  • Mounts in under 10 minutes
  • Lowest total cost of ownership of any ADS-B Out solution

Install in Minutes

Installation is as simple as replacing the aircraft position light.
Simply replace the aircraft position light, that?s it! No airframe modifications or additional antennas are required. Plus, it works with any Mode C or Mode S transponder. skyBeacon installation uses the existing mounting location, breaker and wiring, with 3 screws and 3 wires. The transponder data is provided via the existing aircraft wiring system using the power transcoder.

Remain Anonymous


Just because you are ADS-B equipped, doesn?t mean you want to be tracked. With skyBeacon?s Anonymous Mode, your aircraft identification remains hidden from the ADS-B OUT signal while squawking 1200. Anonymous Mode keeps the skies safe while protecting your privacy.

Self-Contained WAAS GPS

A built-in WAAS GPS provides skyBeacon with rule compliant position data for ADS-B transmission. No additional wiring or external GPS antenna mounting is required.

Works with Your Existing Mode C or S Transponder

skyBeacon works with any existing transponder. uAvionix?s patented power transcoder technology seamlessly communicates with your existing transponder, any transponder, over your aircraft?s electrical system. tailBeacon and skyBeacon are the only UAT ADS-B OUT devices on the market that work with Mode S transponders.

Instant Setup and Configuration

Mechanically installing skyBeacon is the first easy step. With uAvionix?s mobile app, configuration is just as simple. Our mobile application (available for both Apple iOS and Android) guides your installer through setting the necessary values including the ICAO address, emitter type, aircraft length, width and GPS offsets.
